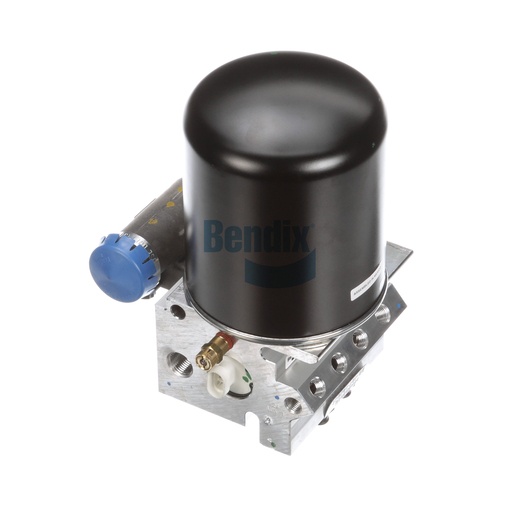

K154347
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer is a vital component in the air treatment system of commercial vehicles, ensuring that the air supply is clean and free from moisture, which is crucial for optimal brake performance. This stand-alone air dryer features a non-adjustable governor type and is designed to mount to the purge reservoir, effectively managing the air supply under varying conditions. With a cut-in pressure of 110 PSI and a cut-out pressure of 130 PSI, it effectively regulates air pressure to prevent moisture build-up. The unit is equipped with multiple delivery ports, enhancing its versatility across different configurations. Operating in temperatures from -40°F to 175°F, it is built for durability and reliability in extreme conditions. At a net weight of 15.3 lbs, it is both robust and efficient. Choose Source One Parts Center for your Bendix OEM air dryer needs and keep your air systems functioning optimally.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
AUX 1 Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 2 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.3 lb
