$679.95
$815.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

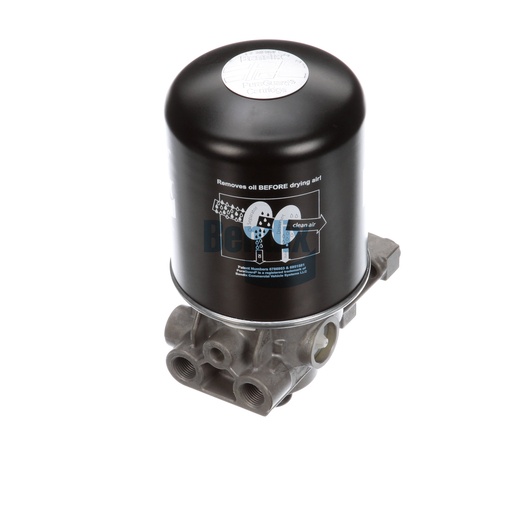

The Air Dryer is a critical component of the Bendix air treatment system, designed to remove moisture and contaminants from the compressed air before it enters the braking system. This ensures optimal brake performance and longevity by preventing corrosion and other damage. With advanced technology, this air dryer helps maintain consistent air quality, which is essential for reliable braking operation. By using a high-quality air dryer, you enhance the effectiveness of your air brake system, contributing to overall vehicle safety. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you get quality components that stand the test of time.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
150 °F (66 °C)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
28.75 lb
