$799.95
$959.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

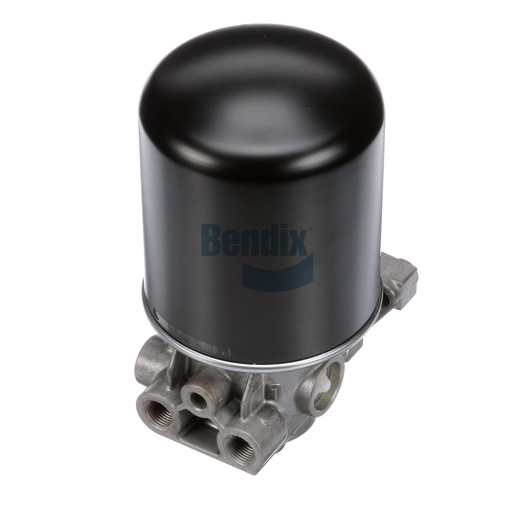

The Bendix Air Dryer is an essential component of your vehicle's air treatment system, specifically designed to eliminate moisture and contaminants from the compressed air supply. This advanced air dryer operates effectively across a wide temperature range, from -40 °F to 200 °F, ensuring that your braking system remains dry and functional in all conditions. The stand-alone design features a user-defined purge volume, allowing for customization based on your specific air system requirements. Installation is straightforward, thanks to its compatible ports, and the durable construction ensures long-lasting performance. Additionally, the dryer includes a turbo cut-off function, optimizing air supply and enhancing efficiency. Weighing approximately 9.55 lbs, it is both robust and lightweight, making it an ideal choice for heavy-duty applications. By investing in the Bendix Air Dryer, you protect your braking system from moisture-related issues, enhancing reliability and safety on the road. For high-quality Bendix OEM parts, Source One Parts Center is your best choice, delivering excellence and performance for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Heater / Thermostat Rating
24V / 90W
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Turbo Cut-off Function
Yes
Weight
9.55 lb
