DESCRIPTION

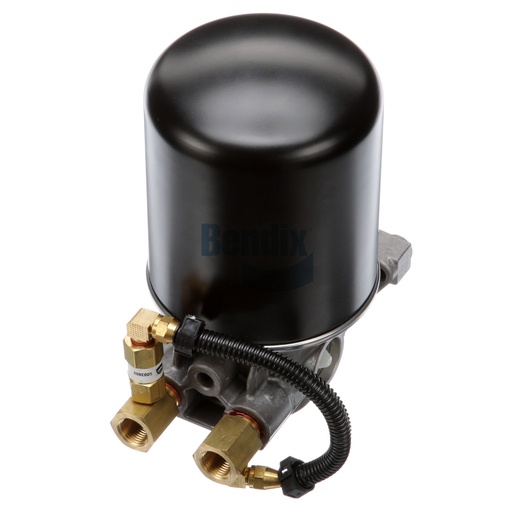

The Air Dryer from Bendix is a critical component of your vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air supply. Weighing 5.0 kg (10.98 lb), this stand-alone air dryer ensures optimal performance of your truck's braking and air systems, preventing damage and enhancing reliability. With advanced technology, it effectively purges unwanted moisture, extending the lifespan of your air system components. Its robust construction is capable of withstanding harsh conditions, making it an essential choice for fleet maintenance. For acquiring genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Harmonized System (HS) Code
842139
Cautionary Note(s)
Drop-In (DI) version - do not replace with standard dryer.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
10.98 lb
