$679.95
$815.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

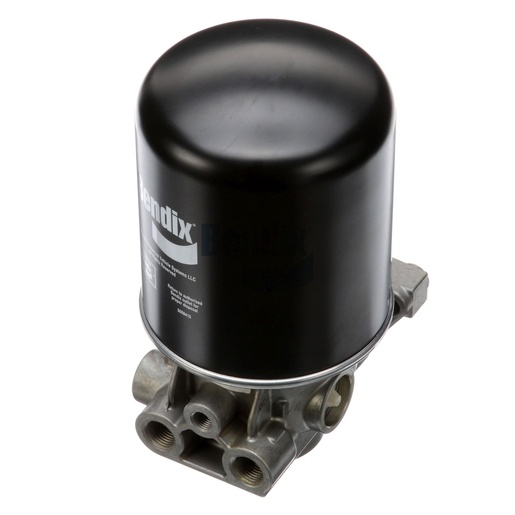

The Bendix Air Dryer is a crucial part of the air treatment system, ensuring that compressed air remains free of moisture and contaminants for optimal brake performance. Weighing 4.3 kg (9.55 lb), this air dryer is engineered for heavy-duty applications and is designed for easy installation and maintenance. With its stand-alone design and standard purge volume, it effectively removes excess moisture, which is essential for preventing potential air system failures. Built to withstand harsh operating conditions, it operates efficiently across a temperature range from -40°F to 150°F. Proper air drying is essential for maintaining the integrity of the air brake system, making this part indispensable for commercial vehicles. Source One Parts Center is the ideal source for genuine Bendix OEM parts, ensuring you get high-quality components to keep your vehicle running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Purge Port
1/4-18 NPT
Maximum Inlet Temperature
150 °F (66 °C)
Heater / Thermostat Rating
24V / 90W
Harmonized System (HS) Code
842139
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Turbo Cut-off Function
Yes
Weight
9.55 lb
