$699.95
$839.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

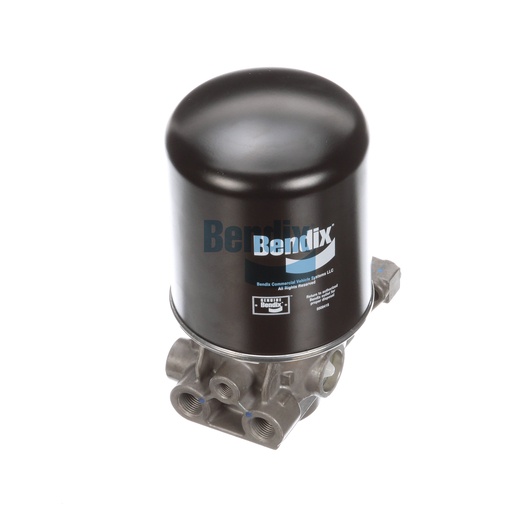

The Air Dryer is a vital component of your truck's air treatment system, ensuring that moisture and impurities are effectively removed from the compressed air before it reaches the brake system. This helps prevent freezing and corrosion, which can lead to costly repairs and downtime. Designed for standalone operation, this air dryer is equipped with a standard cartridge type and offers a purge volume that can be defined by the customer for optimal efficiency. It features a robust construction to withstand the harsh conditions of the road, with a temperature range of -40°F to 160°F. The Air Dryer also includes advanced features such as a soft seat purge valve and a turbo cut-off function, enhancing its reliability and performance. When it comes to maintaining your vehicle's air system, the right air dryer can make all the difference. Source One Parts Center is your best source for genuine Bendix OEM parts, providing the quality and reliability you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Purge Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Harmonized System (HS) Code
842139
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
9.79 lb
