$729.95
$875.94
FINAL SALE. No returns or exchanges.

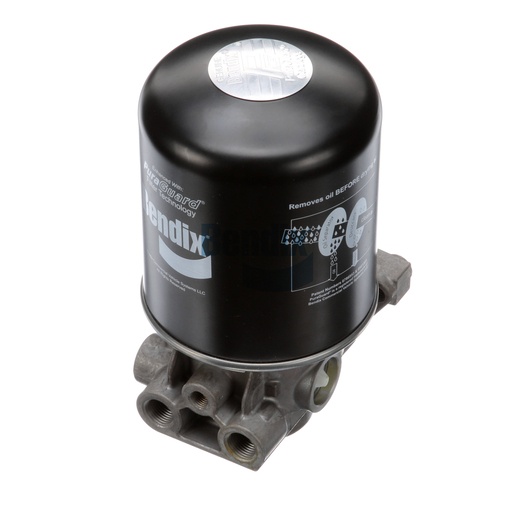

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer is an innovative solution for maintaining the integrity of your truck's air brake system. Designed to efficiently remove moisture and contaminants from compressed air, this unit protects your braking system from corrosion and wear, ultimately extending its lifespan. With a robust design capable of operating in extreme temperatures, this Air Dryer is built to withstand the rigors of heavy-duty applications. Its advanced filtration capabilities ensure that your air brake system operates at peak efficiency, providing you with the reliability necessary for safe driving. Investing in this Air Dryer means investing in the performance and safety of your vehicle. When it comes to sourcing genuine Bendix parts, Source One Parts Center is your trusted partner, offering quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Purge Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Width
144.0 mm (5.67 in)
Length
147.0 mm (5.79 in)
Maximum Inlet Temperature
150 °F (66 °C)
Height
283.0 mm (11.14 in)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Heater Connector Color
White
Turbo Cut-off Function
Yes
Weight
9.11 lb
