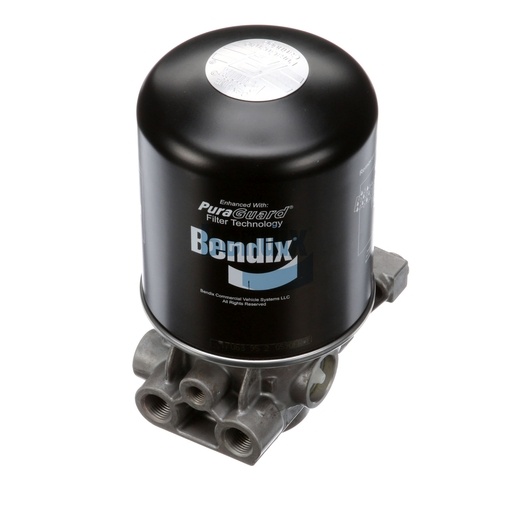

K058350PG
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is a critical component of your vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air supply. With a stand-alone design and utilizing a PuraGuard coalescing cartridge, this air dryer ensures optimal performance in maintaining the integrity of your braking system. It features various ports for easy installation and compatibility with a range of systems, making it a versatile choice for commercial vehicles. Designed to perform under extreme conditions, this air dryer operates efficiently across a wide temperature range, ensuring that your air supply remains dry and clean, which is essential for preventing brake failure. When looking for genuine Bendix OEM parts, Source One Parts Center is your best choice, providing top-notch quality and exceptional service for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Purge Port
1/4-18 NPT
Width
144.0 mm (5.67 in)
Length
147.0 mm (5.79 in)
Maximum Inlet Temperature
150 °F (66 °C)
Heater / Thermostat Rating
24V / 90W
Height
283.0 mm (11.14 in)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Turbo Cut-off Function
Yes
Weight
9.12 lb
