K062724PG
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

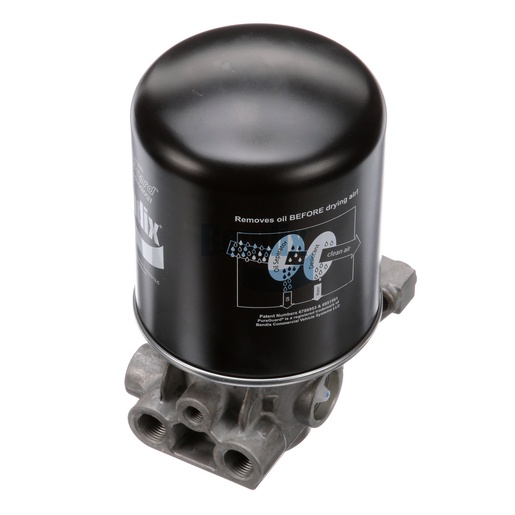

The Bendix Air Dryer is a crucial component designed to keep your vehicle's air system free from moisture and contaminants, enhancing the reliability of your braking system. This stand-alone unit features a PuraGuard (Coalescing) cartridge that effectively filters out impurities, ensuring clean, dry air is supplied to your brake system. With a maximum inlet temperature of 150°F and operational capabilities in extreme conditions ranging from -40°F to 150°F, it is built for durability in various environments. The dryer includes multiple delivery ports for versatile installation options and is designed for easy maintenance. Weighing just 9.11 lbs, its compact design allows for optimal use of space. For genuine Bendix OEM parts, Source One Parts Center is the best choice, providing high-quality solutions for your air treatment needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Lower Mounting Bracket
1/2-13 UNC-2B (3X) - Flange Mount
Body Mounting
1/2-13 UNC-2B (3x)
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Purge Port
1/4-18 NPT
Heater / Thermostat Rating
12V / 90W
Width
144.0 mm (5.67 in)
Length
147.0 mm (5.79 in)
Maximum Inlet Temperature
150 °F (66 °C)
Height
283.0 mm (11.14 in)
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Turbo Cut-off Function
No
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
System Air - Customer Defined
Heater Connector Color
White
Weight
9.11 lb
