$1,499.95
$1,799.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

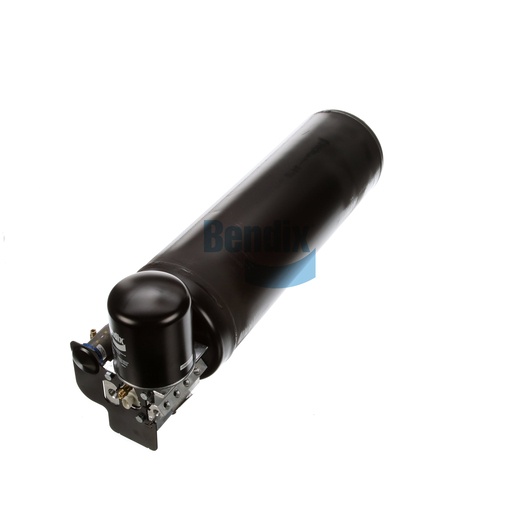

The Bendix air dryer is a vital component of the air treatment system, designed to remove moisture and contaminants from compressed air. With a weight of 55.65 lbs, this efficient dryer ensures that air brake systems operate smoothly, preventing corrosion and extending the lifespan of your components. Its advanced design includes a standard purge volume and is built to withstand varied operating conditions, ensuring reliable performance. When you choose genuine Bendix parts from Source One Parts Center, you are ensuring that your air treatment system operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-495: Tank - Purge, Air Dryer
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (Plugged)
Governor Unloader Port
1/8-27 NPT x 1/4 PTC (90° Elbow)
PRI Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
109 PSI
Cut-in Pressure
110 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Number of Compartments
2
Pressure Protection Valve Configuration
2 in Series
Reservoir Length
29.88 IN
Harmonized System (HS) Code
842139
AUX 2 Delivery Opening Pressure
85 PSI
Purge Valve Type
Hard Seat
Reservoir Fill Type
Integral Fill
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mounting Defined by Customer
Governor Type
Non-Adjustable
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Reservoir Material
Steel
Heater Connector Color
White
Governor Included
Yes
Reservoir Diameter
Ø 9.0 IN
Weight
55.65 lb
