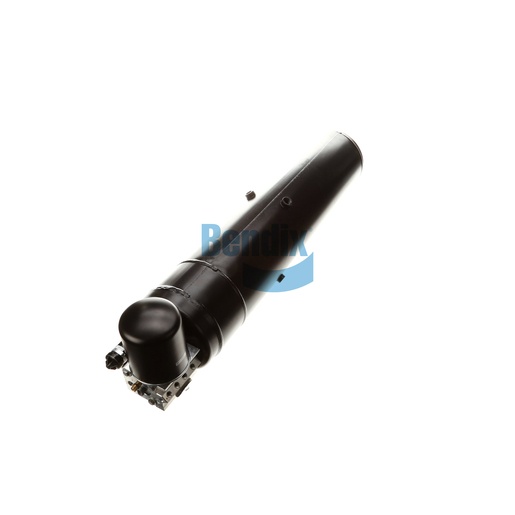

K095020
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component for any commercial vehicle, designed to ensure the optimal performance of air brake systems by removing moisture and contaminants from compressed air. This stand-alone unit features a robust construction with adjustable governor types, allowing it to adapt to various applications. With a pressure range of 0.8 BAR and a reservoir length of 38.85 inches, it provides efficient moisture management, enhancing the longevity and reliability of air brake components. The air dryer's design includes multiple delivery ports and a purge valve type that ensures effective air treatment, making it crucial for maintaining safety and performance on the road. Weighing 24.0 kilograms (53.0 pounds), it is built for durability and efficiency. Source One Parts Center is the leading destination for genuine Bendix OEM parts, ensuring you have access to high-quality components that meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pressure Range
0.8 BAR
VMRS
013-010-495: Tank - Purge, Air Dryer
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT (Plugged)
Governor Reservoir Port
1/8-27 NPT (with Schrader Valve)
AUX 2 Delivery Opening Pressure
103 PSI
SEC Delivery Opening Pressure
103 PSI
AUX 1 Delivery Opening Pressure
112 PSI
PRI Delivery Opening Pressure
112 PSI
Safety Valve Opening Pressure
153 PSI
Number of Compartments
2
Heater / Thermostat Rating
24V / 90W
Reservoir Length
38.85 IN
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Cut-out Pressure
9.6 BAR
Governor Type
Adjustable
Purge Valve Type
DLU (Hard Seat)
Reservoir Fill Type
External Fill
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mounting Defined by Customer
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Purge Exhaust Port
Standard (with Adapter)
Reservoir Material
Steel
Governor Included
Yes
Reservoir Diameter
Ø 9.0 IN
Weight
53 lb
