$2,999.95
$3,599.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

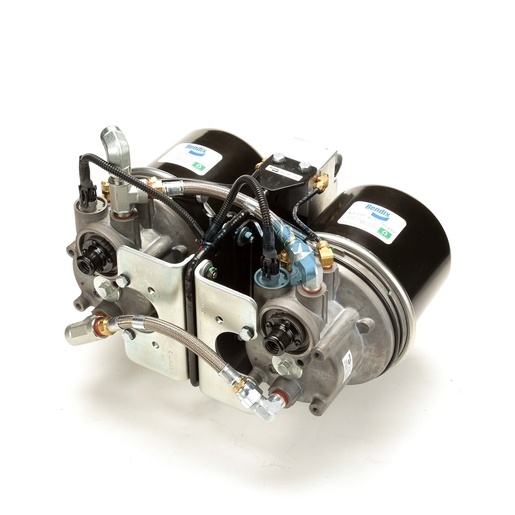

The Bendix air dryer module is a critical component of your vehicle's air treatment system, designed to ensure that the air used in your braking system is free from moisture and contaminants. This module features advanced technology that provides optimal drying performance, significantly enhancing the reliability and efficiency of your brake system. With a heavy-duty construction that can handle tough operating conditions, this air dryer module ensures that your brakes operate smoothly and safely. Weighing 33.6 kg, it is designed for easy installation and maintenance, making it an essential part of your air brake system. For genuine Bendix OEM parts, Source One Parts Center is the best place to shop, ensuring you receive quality components that keep your vehicle running efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.30 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Supply Port
1/2-14 NPT x 1/2-14 NPT (90° Elbow)
PRI Delivery (Reservoir) Port
1/2-14 NPT x 1/2-14 NPT (Male Branch Tee)
Governor Control Port
1/8-27 NPT
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 90W
Harmonized System (HS) Code
903289
Air Dryer Configuration
AD-IP / AD-IP (EverFlow)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Color
Gray
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Power Harness Connector Type
Weather Pack 2-Way Sealed Connector (Female)
Mounting
Ø.675 IN (2x) / .675 IN X 1.069 IN (2x)
Weight
73.99 lb
