$3,799.95
$4,559.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

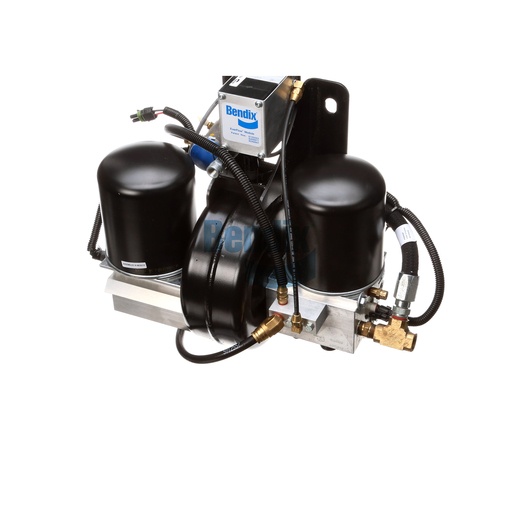

The Air Dryer Module from Bendix is designed to enhance the efficiency and reliability of your vehicle's air system by removing moisture and contaminants from compressed air. This high-performance dryer is essential for maintaining the integrity of air brake systems, as it prevents moisture buildup that can lead to corrosion and system failure. With a non-adjustable governor and a robust construction, this air dryer is built to withstand the rigors of commercial use, ensuring long-lasting performance across a range of operating conditions. Its advanced features include a standard purge volume and a compact design that allows for easy installation and maintenance. By investing in this Air Dryer Module, you are prioritizing the reliability and performance of your fleet. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive quality components that keep your vehicles operating smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.676 IN x .40 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT X 1/2-14 NPT (Union Tee)
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery (Reservoir) Port
1/4-18 NPT
SEC Delivery (Reservoir) Port
1/4-18 NPT
Governor Control Port
1/8-27 NPT X 1/4 Tube (Compression / Straight)
SEC Reservoir Port
1/8-27 NPT X 1/4-18 NPT (90° Elbow / Extended)
Governor Reservoir Port (Remote Charge)
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
105 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
266.7 mm (10.5 in)
Governor Unloader Port
3/8-18 NPT x 1/2 PTC (45° Elbow)
Height
389.4 mm (15.33 in)
Width
625.6 mm (24.63 in)
Harmonized System (HS) Code
903289
Air Dryer Configuration
AD-IS / AD-IS (EverFlow)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Type
Non-Adjustable
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Power Harness Connector Type
Weather Pack 2-Way Sealed Connector (Female)
Heater Connector Color
White
Governor Included
Yes
Weight
53.75 lb
