$3,599.95
$4,319.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

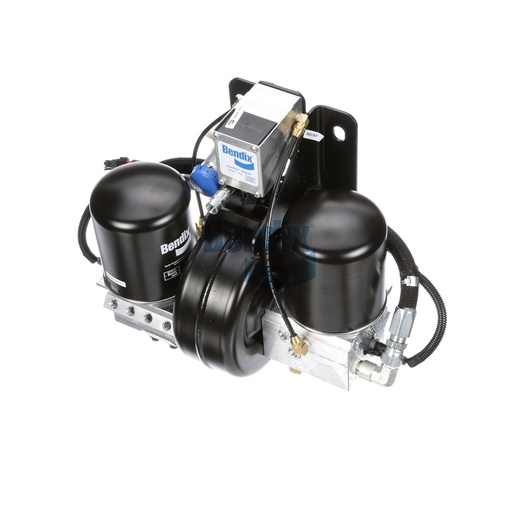

The Bendix Air Dryer Module is a critical component in the air treatment system of commercial vehicles, designed to remove moisture and contaminants from the air supply. This ensures the optimal performance of the braking system, enhancing safety and reliability on the road. With a gross weight of 29.9 kg, this module is robustly constructed to withstand the demands of heavy-duty applications. The module features advanced technology that provides efficient moisture removal and is compatible with various vehicle configurations. Its design incorporates a purge valve for effective moisture management, ensuring that air delivered to the braking system is clean and dry. For high-quality Bendix parts, Source One Parts Center is the best option, offering a comprehensive selection of genuine OEM components that support the reliability of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.676 IN x .40 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT X 1/2-14 NPT (Street Tee)
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery (Reservoir) Port
1/4-18 NPT
SEC Delivery (Reservoir) Port
1/4-18 NPT
Governor Control Port
1/8-27 NPT X 1/4 Tube (Compression / Straight)
SEC Reservoir Port
1/8-27 NPT X 1/4-18 NPT (90° Elbow / Extended)
Governor Reservoir Port (Remote Charge)
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
105 PSI
AUX 1 Delivery Opening Pressure
109 PSI
AUX 2 Delivery Opening Pressure
109 PSI
SEC Delivery Opening Pressure
109 PSI
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Heater / Thermostat Rating
24V / 90W
Length
266.7 mm (10.5 in)
Governor Unloader Port
3/8-18 NPT x 1/2 PTC (45° Elbow)
Height
387.4 mm (15.25 in)
Width
625.6 mm (24.63 in)
Harmonized System (HS) Code
903289
Air Dryer Configuration
AD-IS / AD-IS (EverFlow)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Color
Gray
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Type
Non-Adjustable
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Power Harness Connector Type
Weather Pack 2-Way Sealed Connector (Female)
Governor Included
Yes
Weight
65.81 lb
