$2,899.95
$3,479.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

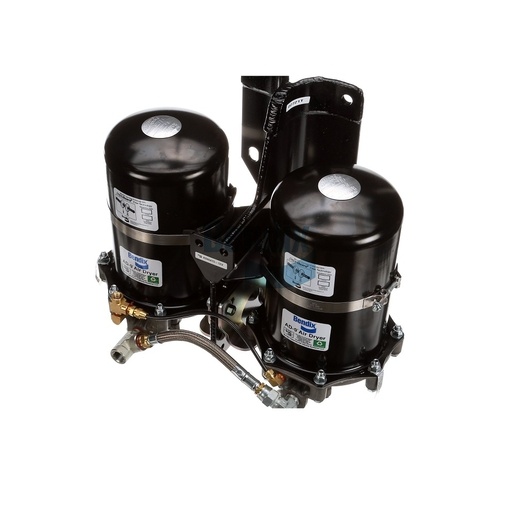

Enhance the efficiency of your air treatment system with the Bendix Air Dryer Module, specifically designed for EverFlow dry applications. This module features advanced engineering to provide optimal air drying capabilities, essential for maintaining the performance of your air brake systems. With a purge volume designed for standard operation, this air dryer ensures that moisture is effectively removed from the air supply, preventing damage and enhancing reliability. The module is built to withstand extreme temperatures and demanding conditions, making it perfect for heavy-duty applications. Its straightforward installation process allows for quick replacements, minimizing downtime. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the ideal destination for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port
1/2-14 NPT X 1/2-14 NPT (Male Run Tee)
PRI Delivery (Reservoir) Port
1/2-14 NPT x 1/2-14 NPT (Male Branch Tee)
Governor Control Port
1/4-18 NPT x 1/4-18 NPT (Street Tee)
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Safety Valve Opening Pressure
200 PSI
Width
254.0 mm (10.0 in)
Length
288.0 mm (11.34 in)
Height
401.0 mm (15.79 in)
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Air Dryer Configuration
AD-9 / AD-9 (Tandem)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Purge Exhaust Port
Open
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Purge Volume
Standard
Heater Connector Color
White
Mounting
Ø.675 IN (2x) / .675 IN X 1.069 IN (2x)
Weight
81.65 lb
