$2,899.95
$3,479.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

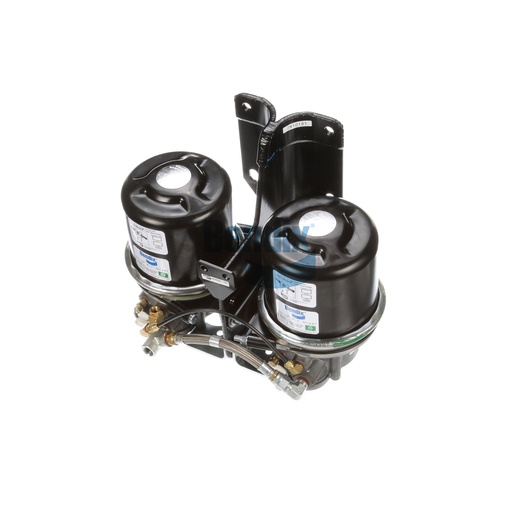

The Air Dryer Module is a critical component in maintaining air quality and pressure in your commercial vehicle’s braking system. This advanced module is designed to efficiently remove moisture and contaminants from compressed air, ensuring that the air supply to your brakes remains dry and clean. By preventing water and dirt from entering the braking system, the Air Dryer Module enhances performance and prolongs the life of the air brake components. With a robust construction built to withstand extreme operating conditions, this module operates effectively in temperatures ranging from -40 °F to 200 °F. When you choose Source One Parts Center for your Bendix OEM parts, you are ensuring that your vehicle is equipped with the highest quality components for safe and reliable operation.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.30 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Supply Port
1/2-14 NPT X 1/2-14 NPT (Male Run Tee)
PRI Delivery (Reservoir) Port
1/2-14 NPT x 1/2-14 NPT (Male Branch Tee)
Governor Control Port
1/4-18 NPT x 1/4-18 NPT (Street Tee)
Heater / Thermostat Rating
12V / 90W
Safety Valve Opening Pressure
200 PSI
Length
321.0 mm (12.64 in)
Height
433.0 mm (17.05 in)
Width
482.0 mm (18.98 in)
Harmonized System (HS) Code
842139
Air Dryer Configuration
AD-IP / AD-IP (Tandem)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Purge Exhaust Port
Standard
Heater Connector Color
White
Mounting
Ø.675 IN (2x) / .675 IN X 1.069 IN (2x)
Weight
87.09 lb
