K046535

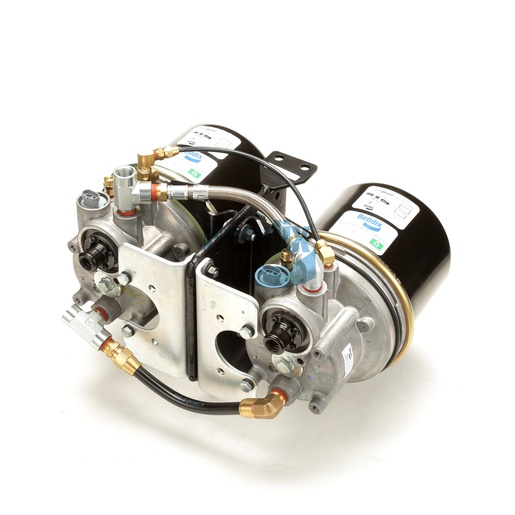

Air Dryer Module
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer Module is an essential component for maintaining the efficiency and reliability of your vehicle's air system. Designed to effectively remove moisture and contaminants from the compressed air, this module helps prevent damage to air-operated components and enhances overall system performance. The robust construction ensures durability under demanding conditions, making it suitable for heavy-duty applications. This air dryer module is easy to install, ensuring that your vehicle remains operational with minimal downtime. By integrating this component into your system, you help maintain optimal performance and safety. Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Clearance to Remove Cartridge
.30 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Supply Port
1/2-14 NPT X 1/2-14 NPT (Male Run Tee)
PRI Delivery (Reservoir) Port
1/2-14 NPT x 1/2-14 NPT (Male Branch Tee)
Governor Control Port
1/4-18 NPT x 1/4-18 NPT (Street Tee)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 90W
Length
321.0 mm (12.64 in)
Height
432.0 mm (17.01 in)
Width
482.0 mm (18.98 in)
Harmonized System (HS) Code
842139
Air Dryer Configuration
AD-IP / AD-IP (Tandem)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Heater Connector Color
Gray
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Purge Exhaust Port
Standard
Mounting
Ø.675 IN (2x) / .675 IN X 1.069 IN (2x)
Weight
87.2 lb
