$3,499.95
$4,199.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

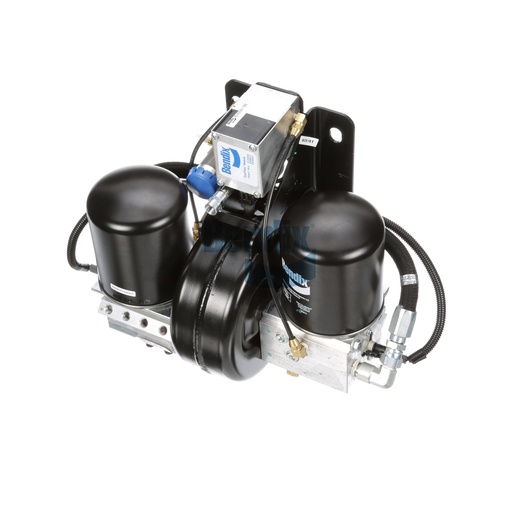

The Air Dryer Module is a key component in the air treatment system of commercial vehicles, designed to remove moisture and contaminants from the air supply. With advanced features such as a non-adjustable governor and a purge volume standard, this module ensures that the air supplied to the braking system is clean and dry, promoting optimal performance and longevity of brake components. Its robust design is capable of handling high temperatures and pressures, making it suitable for even the most demanding applications. By investing in this air dryer module, you enhance the reliability of your braking system, ensuring safety and efficiency. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring you receive the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.676 IN x .40 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT X 1/2-14 NPT (Street Tee)
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery (Reservoir) Port
1/4-18 NPT
SEC Delivery (Reservoir) Port
1/4-18 NPT
Governor Control Port
1/8-27 NPT X 1/4 Tube (Compression / Straight)
SEC Reservoir Port
1/8-27 NPT X 1/4-18 NPT (90° Elbow / Extended)
Governor Reservoir Port (Remote Charge)
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
105 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
SEC Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
266.7 mm (10.5 in)
Governor Unloader Port
3/8-18 NPT x 1/2 PTC (45° Elbow)
Height
387.4 mm (15.25 in)
Width
625.6 mm (24.63 in)
Harmonized System (HS) Code
903289
Air Dryer Configuration
AD-IS / AD-IS (EverFlow)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Type
Non-Adjustable
Purge Valve Type
Soft Seat
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Power Harness Connector Type
Weather Pack 2-Way Sealed Connector (Female)
Heater Connector Color
White
Governor Included
Yes
Weight
65.32 lb
