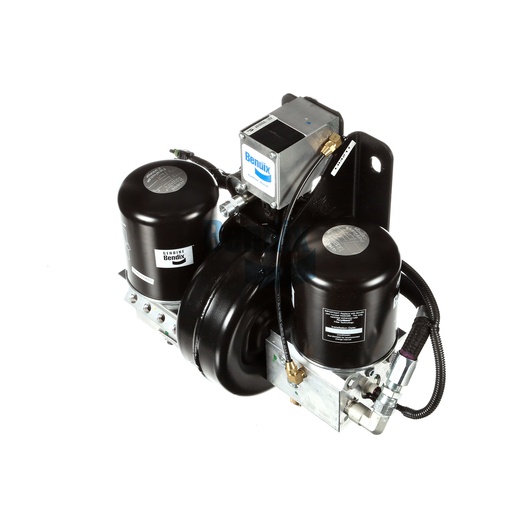

K050866
Air Dryer Module
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer Module is a sophisticated component designed to enhance the air treatment system in commercial trucks. This module removes moisture and contaminants from the air brake system, preventing corrosion and extending the lifespan of critical components. With a maximum inlet temperature of 160°F and a cut-in pressure of 105 PSI, this air dryer module is engineered for optimal performance in demanding conditions. Its advanced design includes features like a non-adjustable governor and multiple delivery ports, ensuring efficient air management. For fleet operators seeking reliable solutions, Source One Parts Center is the ideal destination for genuine Bendix OEM parts that uphold the highest standards of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.676 IN x .40 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT X 1/2-14 NPT (Street Tee)
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery (Reservoir) Port
1/4-18 NPT
SEC Delivery (Reservoir) Port
1/4-18 NPT
Governor Control Port
1/8-27 NPT X 1/4 Tube (Compression / Straight)
SEC Reservoir Port
1/8-27 NPT X 1/4-18 NPT (90° Elbow / Extended)
Governor Reservoir Port (Remote Charge)
1/8-27 NPT x 1/4 Tube (Compression / 90° Elbow)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
105 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
SEC Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Length
266.7 mm (10.5 in)
Governor Unloader Port
3/8-18 NPT x 1/2 PTC (45° Elbow)
Height
387.4 mm (15.25 in)
Width
625.6 mm (24.63 in)
Harmonized System (HS) Code
903289
Air Dryer Configuration
AD-IS / AD-IS (EverFlow)
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Type
Non-Adjustable
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Purge Exhaust Port
Standard
Purge Volume
Standard
Power Harness Connector Type
Weather Pack 2-Way Sealed Connector (Female)
Heater Connector Color
White
Governor Included
Yes
Weight
67.08 lb
