DESCRIPTION

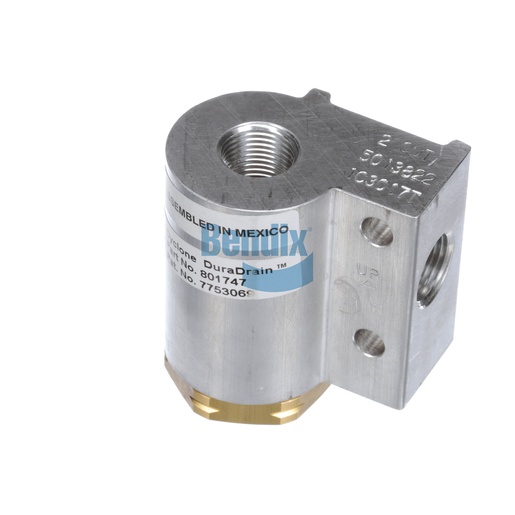

The Bendix Drain Valve is a crucial component in the air treatment system of your commercial vehicle, designed to efficiently remove moisture and contaminants from the air brake system. This cyclone DuraDrain valve features a robust design that can handle the rigors of heavy-duty applications while ensuring optimal performance. With a maximum operating temperature of 150°F and a minimum of -40°F, it is built to withstand harsh conditions. The valve's lightweight construction of just 0.3 kg makes installation a breeze, allowing for quick maintenance and reduced downtime. This part is engineered to meet stringent OEM standards, ensuring compatibility and reliability. When it comes to sourcing genuine Bendix OEM parts for your vehicles, Source One Parts Center is the leading choice, providing you with high-quality components that enhance safety and efficiency.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-451: Condenser/Separator - Air Brake System
Maximum Operating Temperature
150 °F (66 °C)
Delivery Port
3/8-18 NPT
Supply Port
3/8-18 NPT
Width
44.2 mm (1.74 in)
Length
57.2 mm (2.25 in)
Height
63.5 mm (2.5 in)
Harmonized System (HS) Code
848140,848190,848180
Country of Origin
Mexico
Mounting
Ø .28 (2x)
Weight
0.66 lb
