$1,049.95
$1,259.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

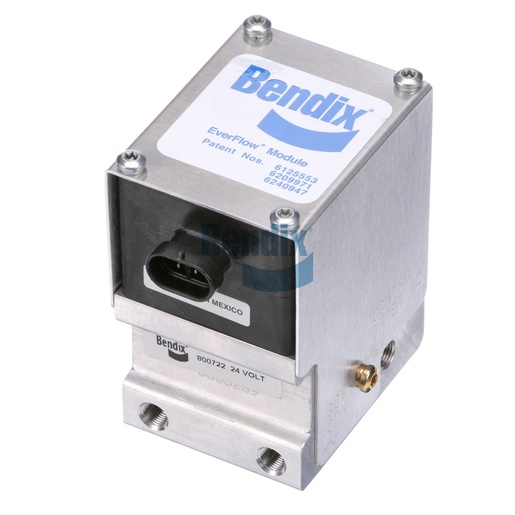

The Pressure Control Module by Bendix plays a crucial role in air treatment systems, specifically designed to optimize air supply for braking applications. This module features a compact design, making it easy to mount and integrate into various setups. It operates effectively within a temperature range of -40°F to 160°F, ensuring reliability in demanding conditions. The robust construction ensures durability, while its multiple ports facilitate seamless connectivity to the air dryer and governor. Weighing just 1.2 kg, it provides a lightweight yet strong solution for fleet operators. For acquiring genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination, ensuring high-quality components for optimal vehicle performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port - Dryer 1
1/8-27 NPT
Control Port - Dryer 2
1/8-27 NPT
Control Port - Governor
1/8-27 NPT
Reservoir Port
1/8-27 NPT
Maximum Inlet Temperature
160 °F (71 °C)
Voltage (Nominal)
24 VDC
Mounting
3/8-16 UNC-2B (2x)
Harmonized System (HS) Code
903289
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Weight
2.71 lb
