DESCRIPTION

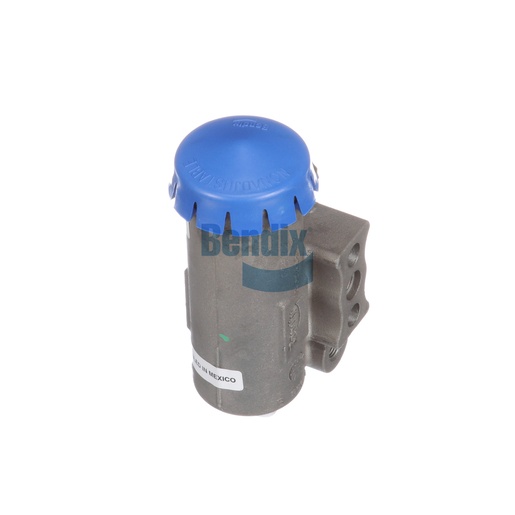

The Bendix Governor Valve is a crucial component that regulates air pressure in the braking system of commercial vehicles, ensuring optimal performance and safety. Engineered for reliability, this valve maintains precise control over air pressure levels, preventing over-pressurization and ensuring that the braking system functions efficiently. With a compact design and a lightweight build of just 1.1 lbs, it is easy to install and integrates seamlessly into various air brake systems. The governor valve operates effectively within a wide temperature range, making it suitable for different operational environments. By maintaining the correct air pressure, it enhances overall braking performance and contributes to vehicle safety. When looking for genuine Bendix OEM parts, Source One Parts Center is the best choice, guaranteeing the quality and reliability of every product.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
100 PSI
Cut-out Pressure
120 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.1 lb
