101104N

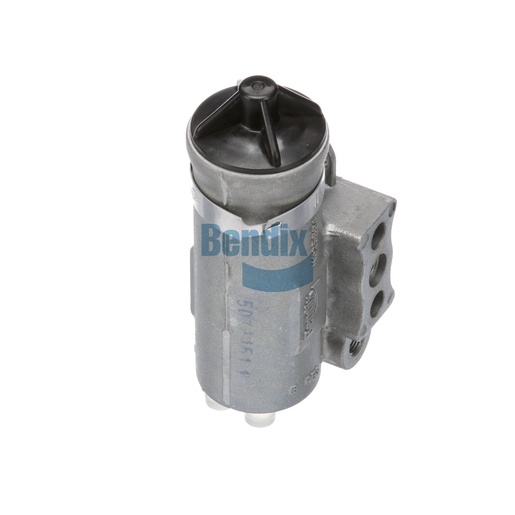

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Governor Valve is a critical component in the air treatment system, responsible for regulating air pressure within your vehicle's braking system. Designed for precision, it features a robust construction that ensures reliable performance in even the most demanding conditions. Weighing just 0.5 kg, this valve is both lightweight and easy to install, making it an ideal choice for maintenance. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand extreme environments. For those seeking top-quality components for their vehicles, Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring optimal braking system performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Cut-in Pressure
80 PSI
Harmonized System (HS) Code
848120
Cut-out Pressure
95 PSI
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
