$95.95
$115.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

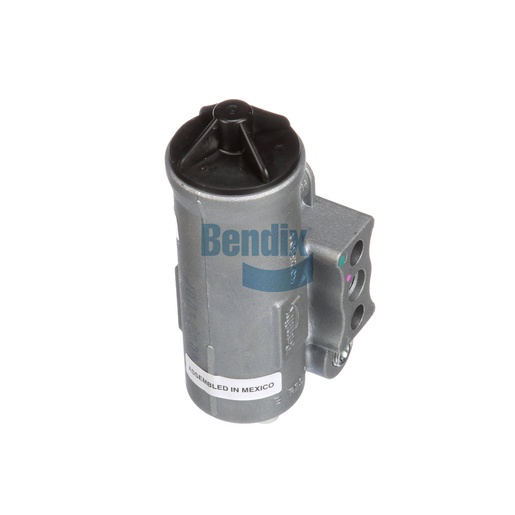

The Bendix Governor Valve is a crucial component in managing air pressure within your vehicle's braking system, ensuring optimal performance and safety. Manufactured with precision in Mexico, this valve is designed to maintain consistent pressure levels, preventing overinflation and potential brake failures. With a compact size and lightweight design, it weighs only 0.5 kg (1.08 lb) and can easily be integrated into various air brake systems. This valve features adjustable cut-in and cut-out pressures, allowing for tailored performance to meet the specific needs of your vehicle. It is built to withstand harsh conditions, with a maximum operating temperature of 250 °F (121 °C), ensuring reliability in any environment. By investing in this governor valve, you enhance the efficiency and safety of your braking system, reducing the likelihood of costly downtime. Source One Parts Center is the best destination for genuine Bendix OEM parts, providing quality components that ensure your commercial vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT (Plugged)
Reservoir Port 3
1/8-27 NPT (Plugged)
Cut-in Pressure
110 PSI
Height
126.7 mm (4.99 in)
Cut-out Pressure
130 PSI
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
