$88.95
$106.74
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

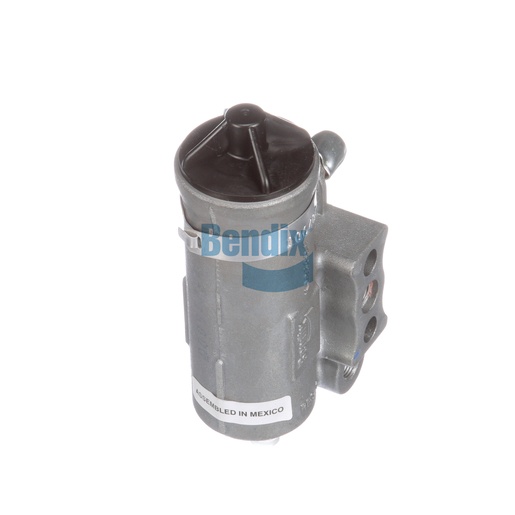

The Governor Valve is a key component in Bendix air treatment systems, designed to regulate air pressure and ensure optimal performance in commercial vehicles. With a compact size and net weight of 1.08 pounds, this valve is engineered for efficiency and reliability, making it an essential part of any air brake system. Its adjustable features allow for precise control of air pressure, which is crucial for maintaining effective braking performance. Built to withstand extreme temperatures and demanding conditions, this governor valve is a smart investment for fleet operators seeking to enhance their vehicle's braking capability. When it comes to purchasing genuine Bendix OEM parts, including governor valves, Source One Parts Center is your top choice, committed to providing high-quality products that ensure safety and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
