$81.95
$98.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

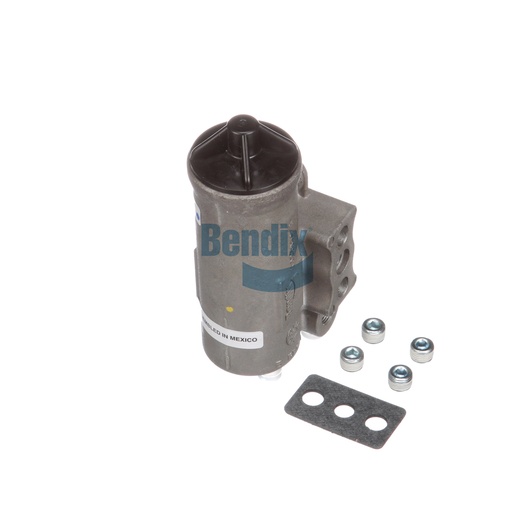

The Bendix Governor Valve is a critical element of the air treatment system in commercial vehicles, responsible for maintaining optimal air pressure for the braking system. Weighing 0.5 kg (1.17 lb), this durable governor valve is designed for efficient operation and reliability, ensuring your air brakes function smoothly. With adjustable cut-in and cut-out pressures, this valve allows for precise control over air flow, which is essential for maintaining the safety and performance of heavy-duty vehicles. Its weather-resistant design ensures it can withstand harsh operating conditions, making it a dependable choice for fleet managers. By incorporating this governor valve into your air brake system, you can enhance its functionality and reliability. At Source One Parts Center, we pride ourselves on being the best source for genuine Bendix OEM parts, ensuring that you receive the highest quality products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
110 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
130 PSI
Maximum Operating Temperature
250 °F (121 °C)
Length
62.5 mm (2.46 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.17 lb
