1185145N

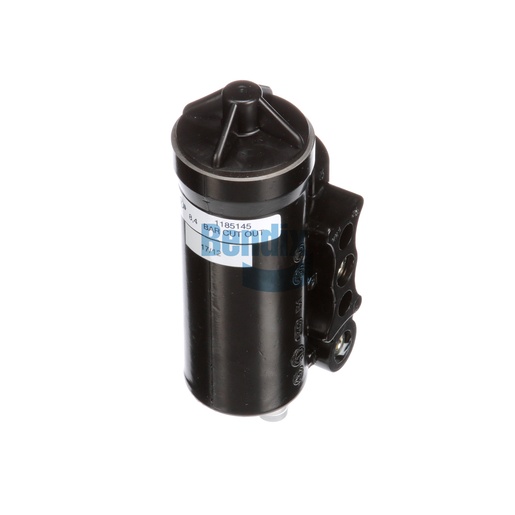

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your air treatment system with the Bendix Governor Valve, designed to regulate air pressure efficiently in commercial vehicles. This valve features a compact design and is engineered for reliable performance, ensuring consistent pressure in your braking system, which is crucial for safety on the road. Weighing just over a pound, it is easy to install and maintain, making it an ideal choice for fleet maintenance. This governor valve is built to withstand extreme temperatures and conditions, providing dependable operation in various environments. For those looking to purchase genuine Bendix parts, Source One Parts Center is the top choice, offering a wide range of quality OEM components for all commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pressure Range
0.8 BAR
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPTF
Reservoir Port 3
1/8-27 NPTF
Unloader Port 3
1/8-27 NPTF
Reservoir Port 1
1/8-27 NPTF (Plugged)
Reservoir Port 2
1/8-27 NPTF (Plugged)
Unloader Port 1
1/8-27 NPTF (Plugged)
Unloader Port 2
1/8-27 NPTF (Plugged)
Height
124.7 mm (4.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
45.8 mm (1.8 in)
Length
60.2 mm (2.37 in)
Cut-out Pressure
8.4 BAR
Harmonized System (HS) Code
848120
Country of Origin
Hungary
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø 8.3 MM (2x)
Weight
1.08 lb
