275200N

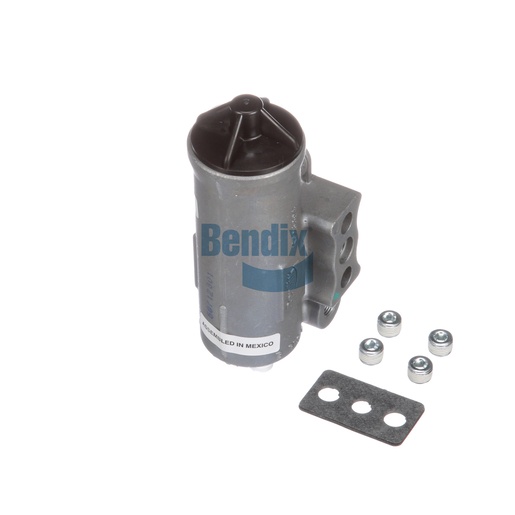

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is a crucial component in the air systems of commercial vehicles, designed to regulate air pressure effectively. This valve ensures that the air supply remains within optimal levels, preventing both over-pressurization and insufficient air flow, which are critical for safe braking operation. Weighing just 0.5 kg, it offers a lightweight design that does not compromise on durability, making it ideal for heavy-duty applications. Its robust construction allows it to perform reliably in various environmental conditions, contributing to the overall efficiency of the braking system. By maintaining consistent air pressure, this governor valve plays a significant role in enhancing vehicle safety. For those in need of high-quality parts, Source One Parts Center is the best choice for purchasing genuine Bendix OEM components, ensuring reliability and performance for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-out Pressure
105 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Cut-in Pressure
90 PSI
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.1 lb
