275508N

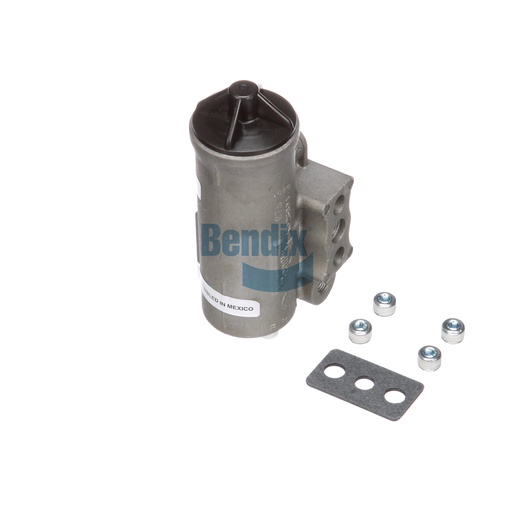

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Governor Valve from Bendix is essential for regulating air pressure within your vehicle's braking system, ensuring optimal functionality and safety. This valve features adjustable settings, allowing for precise control over air pressure, which is crucial for maintaining braking efficiency. With a compact design and a weight of 0.5 kg, it is easy to install and integrate into your existing system. Its robust construction ensures reliability across a wide temperature range from -40 °F to 200 °F, making it suitable for various operational conditions. When you choose Bendix OEM parts from Source One Parts Center, you are guaranteed quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-out Pressure
110 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Cut-in Pressure
95 PSI
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
