$88.95
$106.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

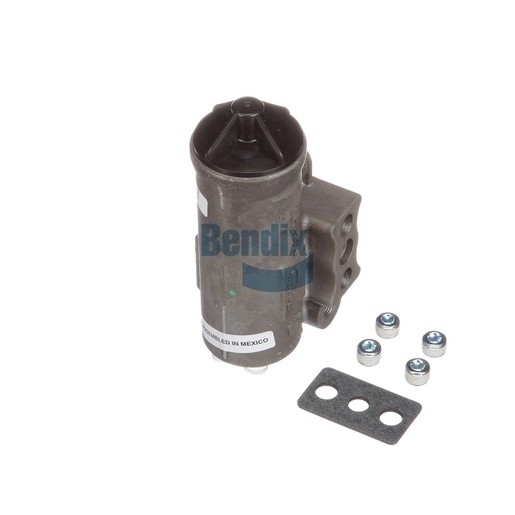

The Bendix governor valve is a critical component in the air treatment system, responsible for regulating air pressure in commercial vehicle brake systems. This valve is designed for high performance, featuring adjustable cut-in and cut-out pressures that optimize air flow and efficiency. Constructed for durability, it can withstand extreme temperatures and conditions, ensuring reliable operation in all environments. Weighing only 1.08 lbs, it is compact and easy to install, reducing maintenance time and effort. By ensuring proper pressure regulation, this governor valve enhances the overall safety and effectiveness of the braking system. For genuine Bendix OEM parts, look to Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
120 PSI
Height
126.7 mm (4.99 in)
Cut-out Pressure
150 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
