276176

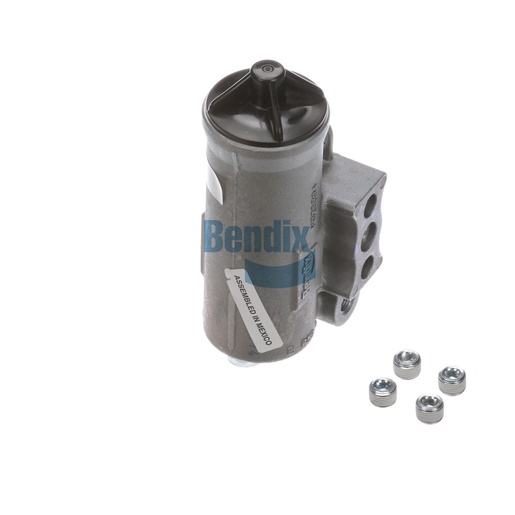

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is an integral part of your air brake system, responsible for regulating air pressure and ensuring that your braking system operates smoothly and efficiently. This valve is engineered for reliability, providing consistent performance under various conditions, making it a crucial component for commercial vehicles. Weighing 0.5 kg, it is designed for easy installation and maintenance, allowing you to quickly replace it without extensive downtime. The governor valve is built to withstand the rigors of heavy-duty use, ensuring that your vehicle's braking system remains responsive and effective. By investing in this quality component, you enhance the safety and performance of your vehicle. For genuine Bendix OEM parts, Source One Parts Center is the best choice, delivering unparalleled quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.15 lb
