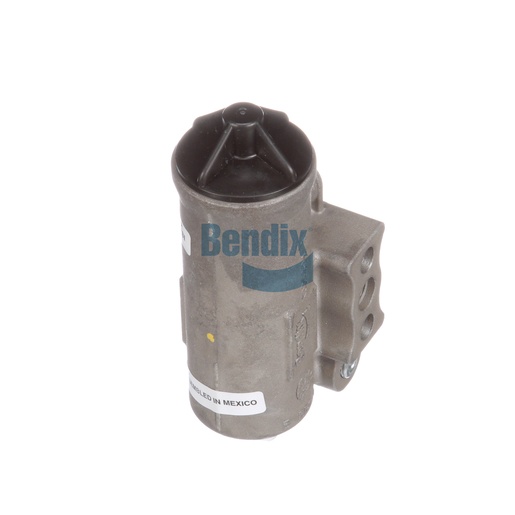

276263N
Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix governor valve is engineered to optimize air pressure management in your truck's braking system, making it an essential component for air treatment. It features a robust design that allows for adjustable cut-in and cut-out pressures, ensuring effective control of the air supply to the brake system. With a weather-resistant construction, this valve operates seamlessly in various environmental conditions, from -40°F to 250°F, ensuring reliability and performance. Its compact design and easy mounting options make installation straightforward, allowing for quick upgrades or replacements. This governor valve not only enhances safety by maintaining optimal pressure but also ensures that your braking system operates efficiently. For genuine Bendix OEM parts like this one, Source One Parts Center is the best choice for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT (Plugged)
Reservoir Port 2
1/8-27 NPT (Plugged)
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
