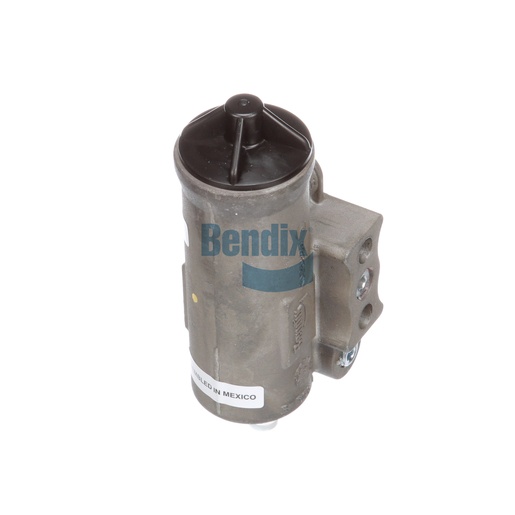

277115N
Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is an essential component in the air management system of commercial vehicles, responsible for regulating air pressure to the braking system. This valve ensures that the air supply remains at optimal levels, preventing over-pressurization that can lead to brake failure. Designed for reliability, it operates effectively across a wide temperature range from -40°F to 200°F, making it suitable for various operating conditions. Its adjustable features allow for precise control over the air supply, ensuring effective braking performance. The compact design facilitates easy installation and integration into your existing system, allowing for quick maintenance and replacements when necessary. For those in need of reliable Bendix components, Source One Parts Center is the best choice for genuine OEM parts, guaranteeing quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT (Plugged)
Reservoir Port 2
1/8-27 NPT (Plugged)
Unloader Port 1
1/8-27 NPT (Plugged)
Unloader Port 2
1/8-27 NPT (Plugged)
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.12 lb
