278814

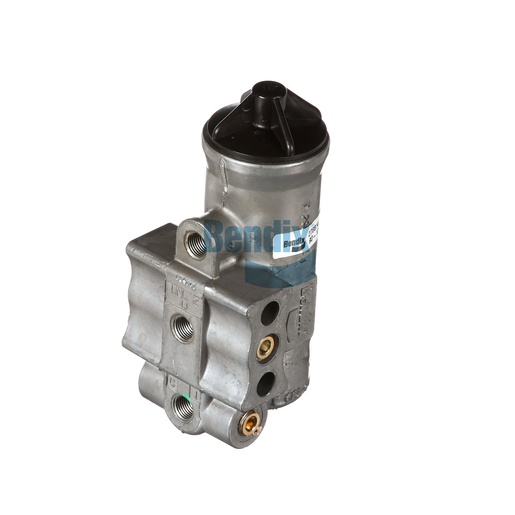

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is a critical component that regulates air pressure in the braking system, ensuring consistent brake performance under various load conditions. Designed with adjustable settings, this valve allows for precise control over cut-in and cut-out pressures, enhancing vehicle safety and performance. The robust construction enables it to operate efficiently from -40°F to 250°F, making it suitable for heavy-duty commercial applications. With a net weight of 0.5 kg, this valve is compact yet powerful, fitting seamlessly into your vehicle's air system. Trust Source One Parts Center for the best selection of genuine Bendix OEM parts to keep your vehicle running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT (Plugged)
Reservoir Port 2
1/8-27 NPT (Plugged)
Unloader Port 1
1/8-27 NPT (Plugged)
Unloader Port 2
1/8-27 NPT (Plugged)
Cut-out Pressure
105 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Cut-in Pressure
90 PSI
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.15 lb
