282436N

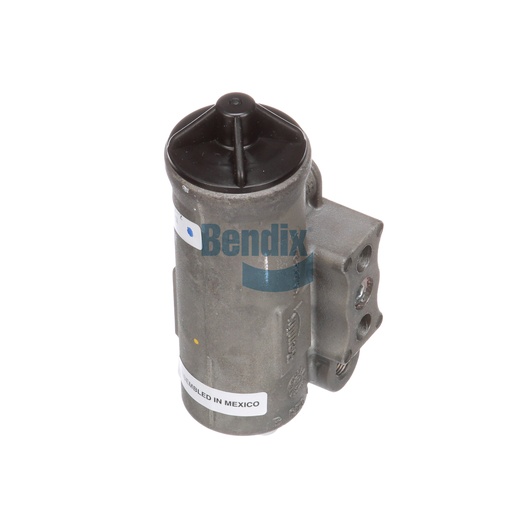

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Governor Valve is a vital component in managing air pressure within your truck's pneumatic system, ensuring optimal performance and safety. Designed to function seamlessly under varying conditions, this valve features adjustable settings to maintain the desired pressure levels, crucial for effective braking and overall vehicle control. With a maximum operating temperature of 250 °F and a minimum of -40 °F, this governor is built to withstand extreme conditions, making it a reliable choice for commercial applications. Its compact design includes multiple ports for easy installation and integration into existing systems, while its weather-resistant features ensure longevity and dependability. For truck operators looking for quality and reliability, Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring you receive the best components for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT (Plugged)
Reservoir Port 3
1/8-27 NPT (Plugged)
Unloader Port 1
1/8-27 NPT (Plugged)
Unloader Port 3
1/8-27 NPT (Plugged)
Cut-in Pressure
100 PSI
Cut-out Pressure
120 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø .338 IN (2x)
Weight
1.12 lb
