$88.95
$106.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

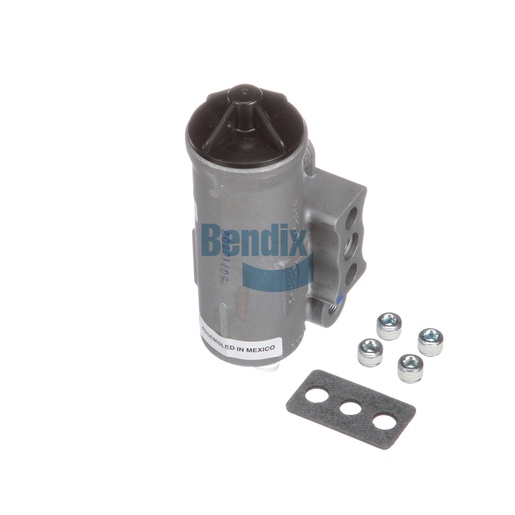

The Bendix Governor Valve is an essential component in air treatment systems, responsible for regulating air pressure and maintaining optimal performance in commercial vehicles. This valve ensures that the air brake system operates efficiently, preventing over-pressurization and ensuring reliable braking performance. Designed to withstand temperatures ranging from -40 °F to 200 °F, it is built for durability and reliability in heavy-duty applications. The governor valve features a compact design for easy installation and integrates seamlessly with existing systems. For those looking for genuine Bendix components, Source One Parts Center is the best source for authentic OEM parts that enhance vehicle safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
115 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Length
62.5 mm (2.46 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
