284713

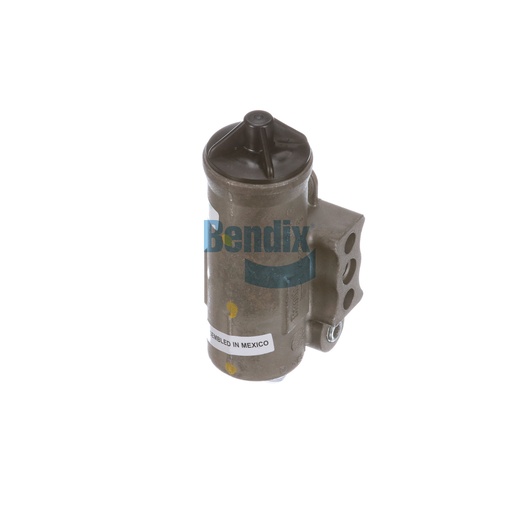

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is a key component in your air brake system, responsible for regulating air pressure to ensure optimal braking performance. Designed for reliability, this valve features adjustable settings that allow for precise control over air supply, catering to different vehicle requirements. Its durable construction can withstand a wide range of temperatures, making it suitable for various operating conditions. With multiple ports for easy integration into existing systems, this governor enhances your vehicle's overall efficiency and safety. When you need genuine Bendix parts that you can trust, choose Source One Parts Center for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT (Plugged)
Reservoir Port 2
1/8-27 NPT (Plugged)
Unloader Port 2
1/8-27 NPT (Plugged)
Unloader Port 3
1/8-27 NPT (Plugged)
Cut-in Pressure
115 PSI
Height
126.7 mm (4.99 in)
Cut-out Pressure
135 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
