289530

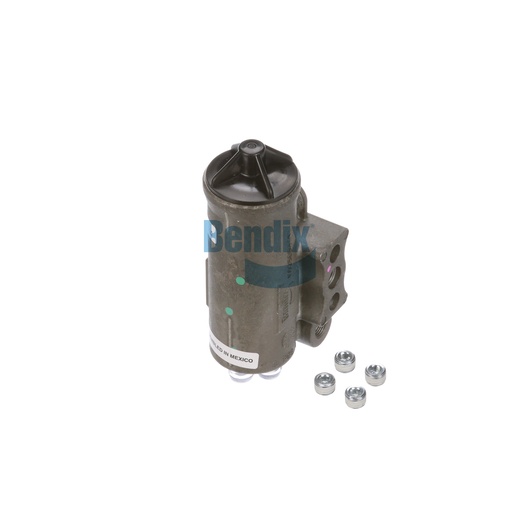

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is an essential component for regulating air pressure in your vehicle's brake system, ensuring optimal performance and safety. Designed for heavy-duty applications, this governor features adjustable settings and multiple ports for versatile installation. It operates efficiently within a temperature range of -40°F to 200°F, making it suitable for various environmental conditions. The robust construction ensures long-lasting durability, and its easy installation process allows for quick maintenance and replacement. This governor valve is crucial for maintaining the correct air pressure, which is vital for the effective operation of air brakes. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, offering high-quality components that keep your commercial vehicles running safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
125 PSI
Height
126.7 mm (4.99 in)
Cut-out Pressure
150 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.15 lb
