DESCRIPTION

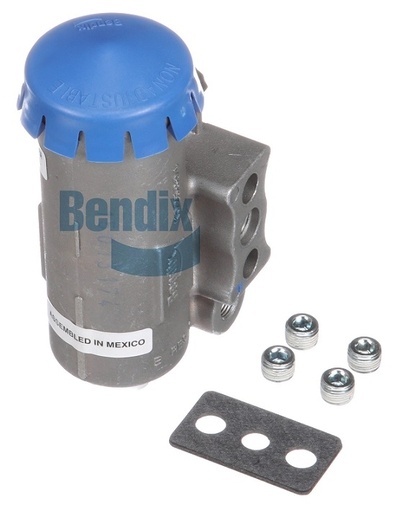

The Governor Valve from Bendix is essential for regulating air pressure in the braking system, ensuring that the system operates effectively and efficiently under different load conditions. This valve is designed to maintain optimal air pressure levels, preventing over-pressurization and ensuring that the brakes function reliably. Its robust construction allows it to withstand the harsh environments typical in heavy-duty trucking, ensuring longevity and dependable performance. The governor valve's precise engineering enables quick installation, minimizing vehicle downtime during maintenance. For those in need of high-quality Bendix OEM parts, Source One Parts Center is the ultimate destination, providing trusted components that enhance the performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Cut-in Pressure
105 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
125 PSI
Maximum Operating Temperature
200 °F (93 °C)
Length
65.5 mm (2.58 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.12 lb
