DESCRIPTION

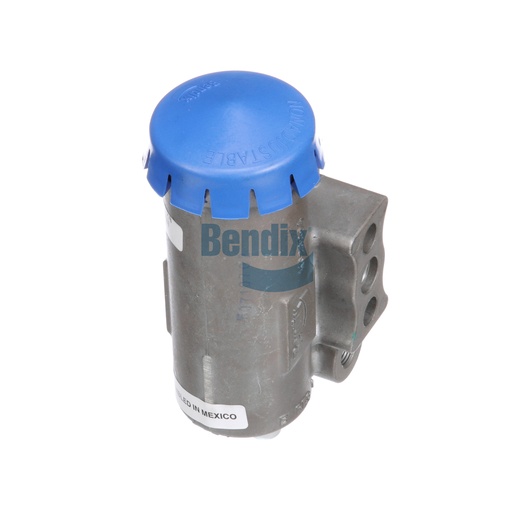

The Bendix Governor Valve is an essential component in the air treatment system of commercial vehicles, designed to regulate air pressure effectively for optimal brake performance. This valve operates with precision, ensuring that the air system maintains appropriate pressure levels, which is critical for the efficient operation of air brakes. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve is built to endure the toughest conditions. It features multiple ports for versatile installation options and quick response times, enhancing overall safety and control. Weighing just 0.5 kg, the valve is easy to handle and install, making it a practical choice for fleet maintenance. Source One Parts Center is the ultimate destination for sourcing genuine Bendix OEM parts, ensuring your vehicle's systems operate at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
58.7 mm (2.31 in)
Length
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.1 lb
