$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

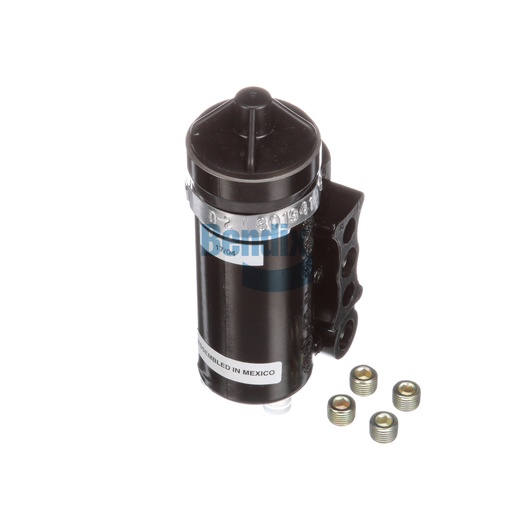

Introducing the Bendix Governor Valve, a crucial component for maintaining optimal air pressure within your vehicle's compressed air system. This governor valve is engineered with precision to regulate the air pressure, ensuring that your braking system functions effectively and safely. With an adjustable cut-out pressure of 9.0 BAR and a maximum operating temperature of 200°F, this valve is built to withstand the demands of heavy-duty applications. Its compact design and easy installation make it a practical choice for fleet operators looking to enhance their vehicle's performance. The valve's robust construction guarantees reliability and longevity, reducing the need for frequent replacements. By choosing this governor valve, you can expect improved braking efficiency and a safer driving experience. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with the assurance of quality and durability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pressure Range
0.9 BAR
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPTF
Reservoir Port 1
1/8-27 NPTF
Reservoir Port 2
1/8-27 NPTF
Reservoir Port 3
1/8-27 NPTF
Unloader Port 1
1/8-27 NPTF
Unloader Port 2
1/8-27 NPTF
Unloader Port 3
1/8-27 NPTF
Height
124.7 mm (4.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
45.8 mm (1.8 in)
Length
60.2 mm (2.37 in)
Harmonized System (HS) Code
848110,848120
Cut-out Pressure
9.0 BAR
Country of Origin
Italy
Weather Resistant
No
Adjustable
Yes
Mounting
Ø 8.3 MM (2x)
Weight
1.1 lb
