802842

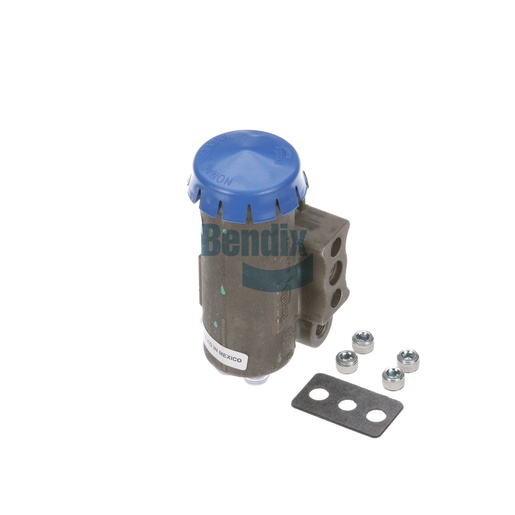

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Governor Valve is a vital component in your Bendix air treatment system, responsible for regulating the air pressure in your braking system. This valve ensures that the air supply remains consistent and within the required parameters, preventing over-pressurization and ensuring optimal brake performance. With a maximum operating temperature of 250°F, this governor is built to withstand the demands of commercial vehicle applications. By maintaining proper air pressure, it enhances the responsiveness and reliability of your braking system, ultimately contributing to safer operation. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring that you receive the highest quality components for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Cut-in Pressure
105 PSI
Cut-out Pressure
125 PSI
Height
126.7 mm (4.99 in)
Maximum Operating Temperature
250 °F (121 °C)
Width
58.7 mm (2.31 in)
Length
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
