K019929N

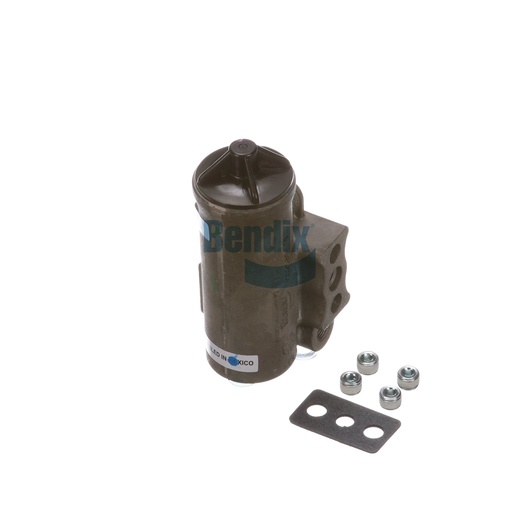

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is an essential component in the air treatment system of your commercial vehicle, regulating air pressure to ensure optimal braking performance. This advanced valve technology guarantees precise control of air supply, contributing to improved safety and efficiency during operation. With easy installation and compatibility with various air systems, it provides reliable performance in even the most demanding conditions. The governor's durable construction ensures longevity, minimizing the need for frequent replacements. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing you with quality and reliability for all your truck parts needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Length
0.1 mm (0.0 in)
Width
0.1 mm (0.0 in)
Height
0.2 mm (0.01 in)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Cut-in Pressure
115 PSI
Cut-out Pressure
135 PSI
Maximum Operating Temperature
250 °F (121 °C)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Weather Resistant
No
Adjustable
Yes
Mounting
Ø .338 IN (2x)
Weight
1.19 lb
