K025310

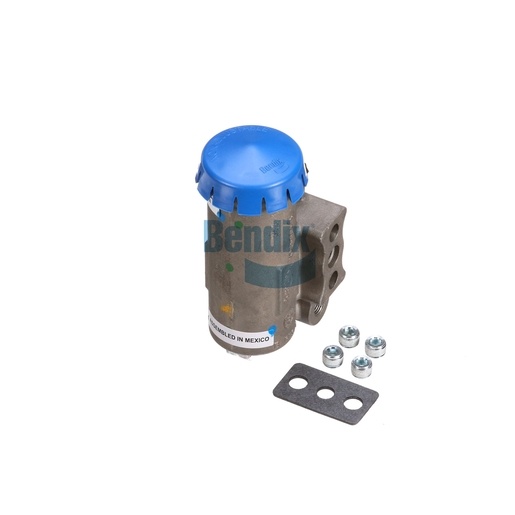

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your truck's air system with the Bendix governor valve, an essential component for precise air pressure regulation. Weighing just 0.5 kg, this governor valve is designed for easy installation and maintenance, ensuring your air system operates efficiently. With a cut-in pressure of 115 PSI and a cut-out pressure of 140 PSI, it effectively manages air supply to brake systems, enhancing overall safety and performance. The valve's durable construction is built to withstand extreme temperatures, making it suitable for a range of operating conditions. Regular maintenance of your air system is crucial for vehicle safety, and this governor valve is a reliable choice for any commercial truck. Source One Parts Center is your best bet for sourcing genuine Bendix OEM parts, ensuring the highest quality for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPT
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Reservoir Port 3
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Unloader Port 3
1/8-27 NPT
Cut-in Pressure
115 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
140 PSI
Maximum Operating Temperature
200 °F (93 °C)
Length
62.5 mm (2.46 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.08 lb
