K038029

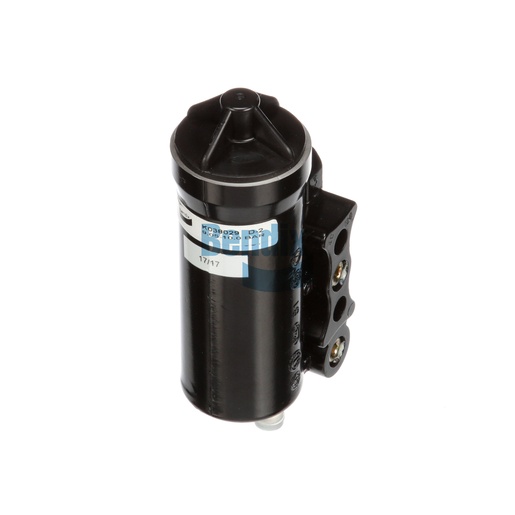

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Governor Valve is a critical component in air treatment systems, designed to regulate air pressure and ensure optimal performance of your vehicle's braking system. Its compact and weather-resistant design allows for reliable operation under various conditions, making it suitable for diverse applications in the commercial vehicle sector. With a pressure range of 0.95 BAR and adjustable features, this valve provides precise control over air supply, enhancing braking efficiency and safety. The governor valve ensures that your braking system operates smoothly, contributing to overall vehicle performance. For genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive high-quality components tailored for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pressure Range
0.95 BAR
VMRS
013-009-070: Governor - Air
Cut-out Pressure
10.0 BAR
Height
124.7 mm (4.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
45.8 mm (1.8 in)
Length
60.2 mm (2.37 in)
Harmonized System (HS) Code
848120
Country of Origin
Italy
Exhaust Port
M10 x 1.0-6H
Reservoir Port 3
M10 x 1.0-6H
Unloader Port 3
M10 x 1.0-6H
Reservoir Port 1
M10 x 1.0-6H (Plugged)
Reservoir Port 2
M10 x 1.0-6H (Plugged)
Unloader Port 1
M10 x 1.0-6H (Plugged)
Unloader Port 2
M10 x 1.0-6H (Plugged)
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø 8.3 MM (2x)
Weight
1.1 lb
