K053364

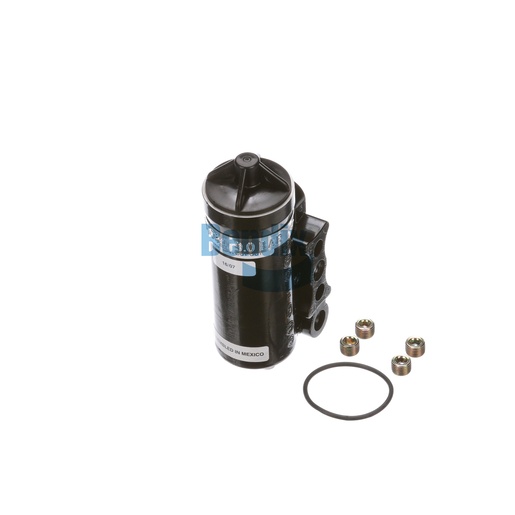

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Governor Valve from Bendix is an integral component that ensures the efficient operation of your vehicle's air system. This valve regulates air pressure, providing precise control over braking and pneumatic systems, which is essential for maintaining safety and performance. With a weather-resistant design, it is built to withstand harsh operating conditions, enhancing its durability and reliability. The adjustable pressure settings allow for customization to meet specific operational needs, making it suitable for a variety of heavy-duty applications. Weighing just over 1 pound, this governor valve is easy to install and integrates seamlessly into existing systems. For all your genuine Bendix OEM parts, trust Source One Parts Center, where quality meets outstanding service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pressure Range
0.9 BAR
VMRS
013-009-070: Governor - Air
Exhaust Port
1/8-27 NPTF
Reservoir Port 1
1/8-27 NPTF
Reservoir Port 2
1/8-27 NPTF
Reservoir Port 3
1/8-27 NPTF
Unloader Port 1
1/8-27 NPTF
Unloader Port 2
1/8-27 NPTF
Unloader Port 3
1/8-27 NPTF
Height
124.7 mm (4.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
45.8 mm (1.8 in)
Length
60.2 mm (2.37 in)
Harmonized System (HS) Code
848120
Cut-out Pressure
9.0 BAR
Country of Origin
Italy
Adjustable
Yes
Weather Resistant
Yes
Mounting
Ø 8.3 MM (2x)
Weight
1.23 lb
