K149944

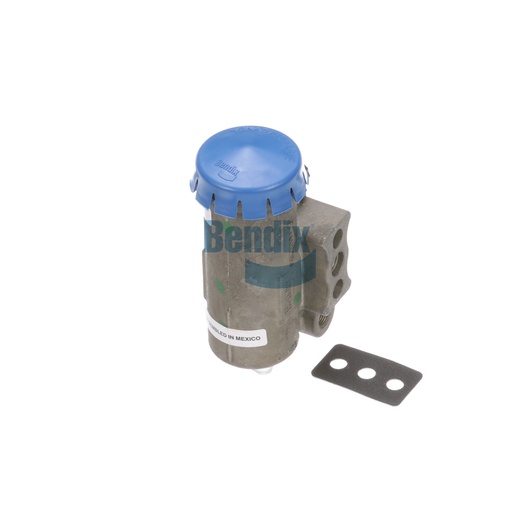

Governor Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Governor Valve is a critical component in managing the air pressure within your commercial vehicle's braking system. Designed for optimal air treatment, this valve boasts a cut-in pressure of 105 PSI and a cut-out pressure of 125 PSI, ensuring that your air supply remains consistent for effective braking. Its compact dimensions (2.61 inches wide and 4.62 inches high) allow for easy installation in tight spaces, making it a suitable choice for various truck models. With multiple ports for both unloader and reservoir connections, this governor valve allows for efficient air management, enhancing the overall performance of your braking system. Source One Parts Center is your trusted source for authentic Bendix OEM parts, ensuring that you get the highest quality for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-009-070: Governor - Air
Reservoir Port 1
1/8-27 NPT
Reservoir Port 2
1/8-27 NPT
Unloader Port 1
1/8-27 NPT
Unloader Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT (Breather Valve)
Reservoir Port 3
1/8-27 NPT (Plugged)
Unloader Port 3
1/8-27 NPT (Plugged)
Cut-in Pressure
105 PSI
Height
117.3 mm (4.62 in)
Cut-out Pressure
125 PSI
Maximum Operating Temperature
200 °F (93 °C)
Length
65.5 mm (2.58 in)
Width
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Adjustable
No
Weather Resistant
No
Mounting
Ø .338 IN (2x)
Weight
1.04 lb
