OR109493

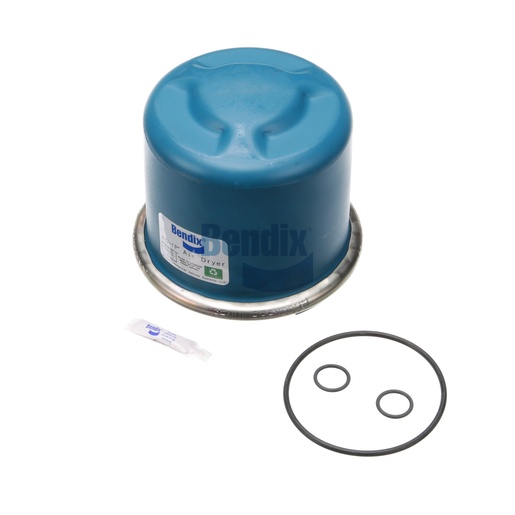

Air Dryer Cartridge
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Dryer Cartridge is an essential part of your vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air supply. This spin-on cartridge features a new desiccant and is engineered for easy installation, weighing in at 7.4 kg. With a maximum operating pressure of 150 PSI and a wide temperature range, it ensures optimal performance in various conditions. Manufactured in Mexico, this cartridge adheres to strict quality standards, providing reliable air treatment for your commercial vehicle. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your top choice, guaranteeing quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-129: Desiccant Cartridge Kit - Air Dryer
Cartridge Thread
1 1/4-7 UNC-2B
Maximum Operating Pressure
150 PSI
Maximum Inlet Temperature
160 °F (71 °C)
Harmonized System (HS) Code
842199
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Country of Origin
Mexico
Desiccant
New
Cartridge Style
Spin-On
Cartridge Type
Standard
Weight
16.2 lb
