3018527X

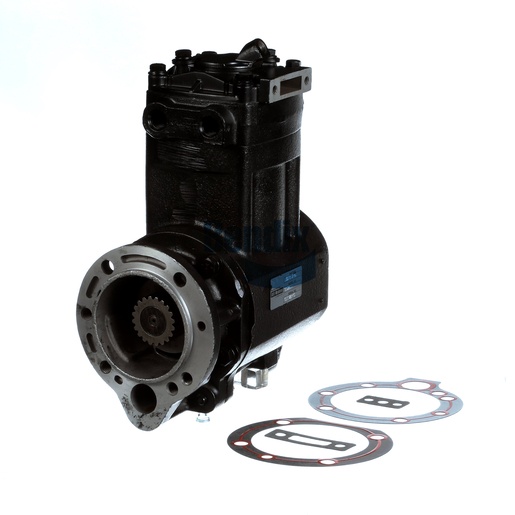

Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Compressor is a vital component for air brake systems in commercial vehicles, providing the necessary air pressure for optimal performance. This model features a water-cooled design and a displacement of 13.2 CFM at 1250 RPM, ensuring efficient air delivery even in demanding conditions. Built with a durable construction, it is compatible with Cummins engine models and is designed for easy installation with a spline drive type. By replacing your compressor with this reliable unit, you can ensure your air brake system operates at peak efficiency, which is crucial for safety and performance on the road. For the best selection of genuine Bendix OEM parts like this compressor, Source One Parts Center is your trusted partner, offering quality you can rely on.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Displacement (CFM at 1250 RPM)
13.2 CFM
Number of mounting holes
4
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Manufacturer
Cummins
Lubrication
Engine Oil Feed
Mounting Flange Location
Flange, Front
Compressor Manufacturer
Holset
Engine Model
L / K / N
Governor Included
No
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Country of Origin
United States
Cooling
Water-Cooled
Weight
38.18 lb
