3048680X

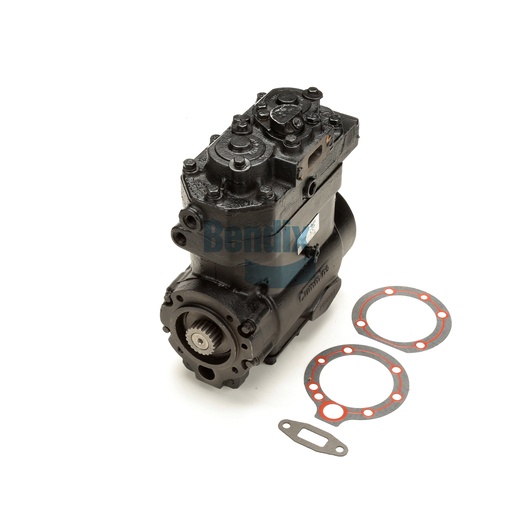

Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Compressor is a critical component for ensuring efficient air supply to your vehicle's braking system. Designed for heavy-duty applications, this compressor boasts robust construction and advanced engineering, providing reliable performance under demanding conditions. Its water-cooled system helps maintain optimal operating temperatures, while the drive flange oil feed lubrication ensures smooth operation and reduces wear. With a displacement of 30 CFM at 1250 RPM, this compressor efficiently meets the air demands of commercial trucks, enhancing their braking capabilities and overall safety. Replacement of your compressor with this OEM part guarantees compatibility and extends the service life of your vehicle's air system. Choose Source One Parts Center for your Bendix OEM parts needs, where quality and reliability are our top priorities.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
2
Thru-Drive Shaft Connector
3-Prong
Displacement (CFM at 1250 RPM)
30 CFM
Number of mounting holes
4
Harmonized System (HS) Code
841480
Engine Manufacturer
Cummins
Lubrication
Drive Flange Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Coolant Inlet Port
Front & Rear
Compressor Manufacturer
Holset
Mounting Flange Location
In-Line (Engine)
Engine Model
L10 / K / N14
Governor Included
No
Discharge Air Port
Rear (Threaded)
Air Inlet Port
Right
Compressor Drive Type
Spline
Crankshaft Drive Type
Spline
Country of Origin
United States
Cooling
Water-Cooled
Weight
76.76 lb
